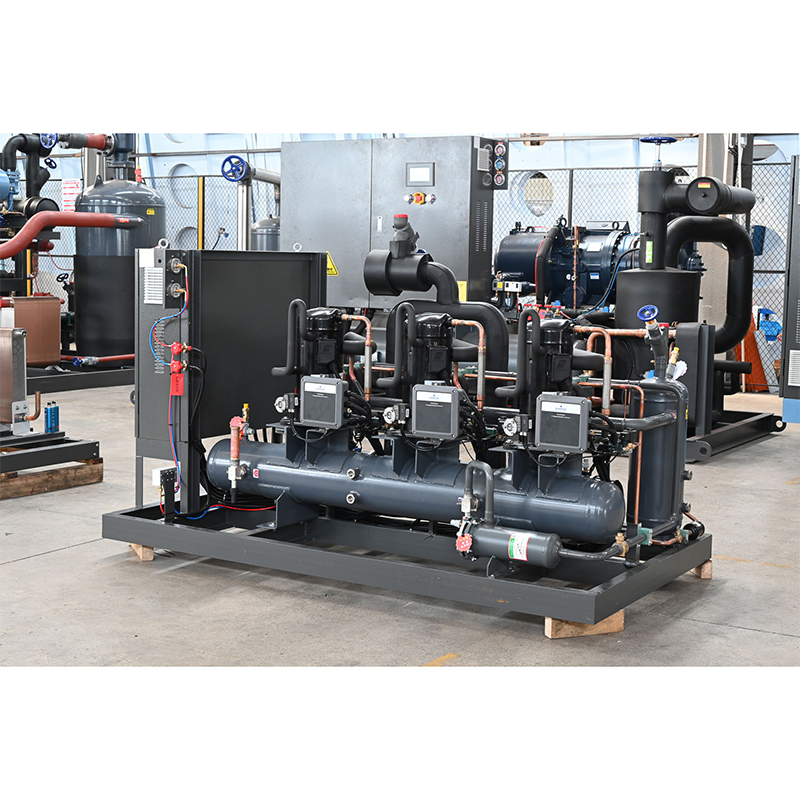

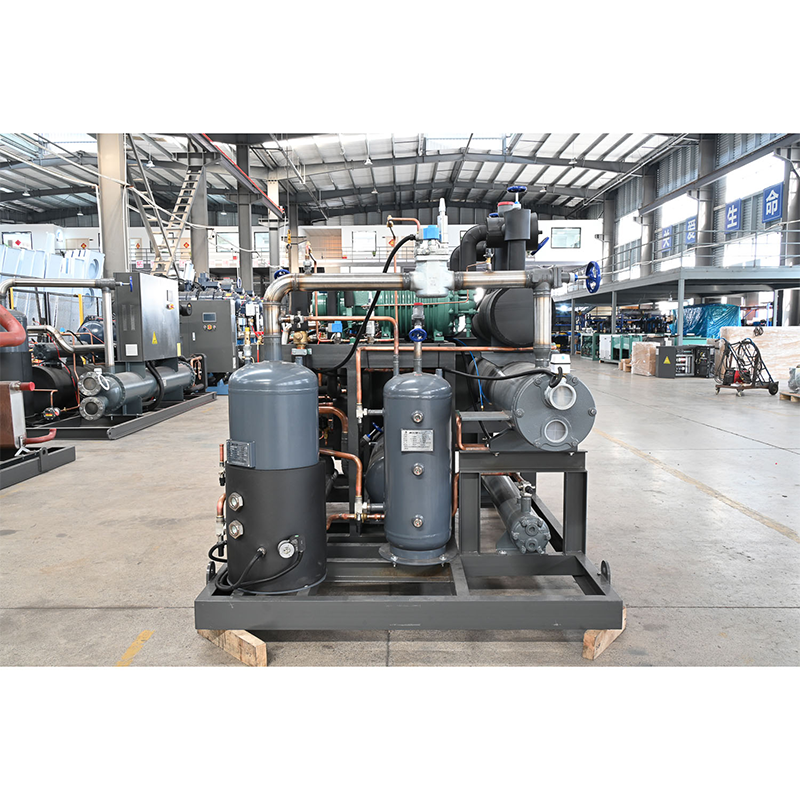

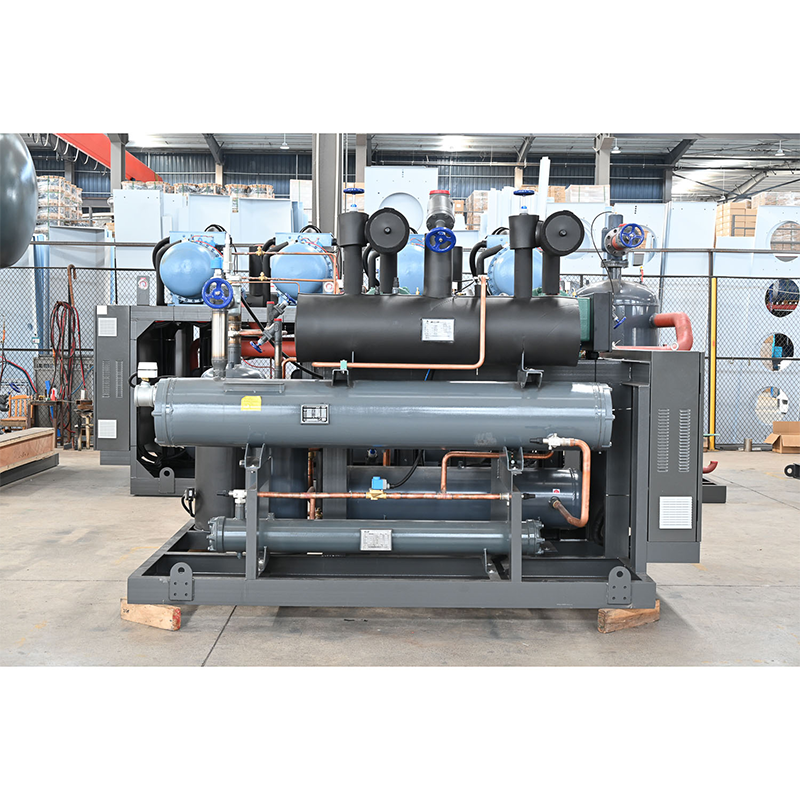

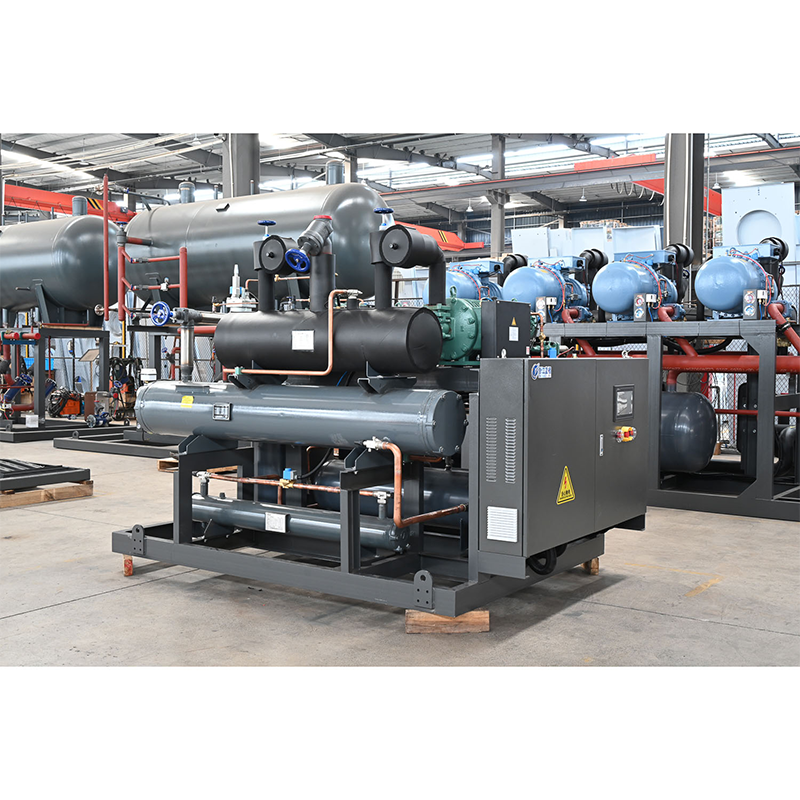

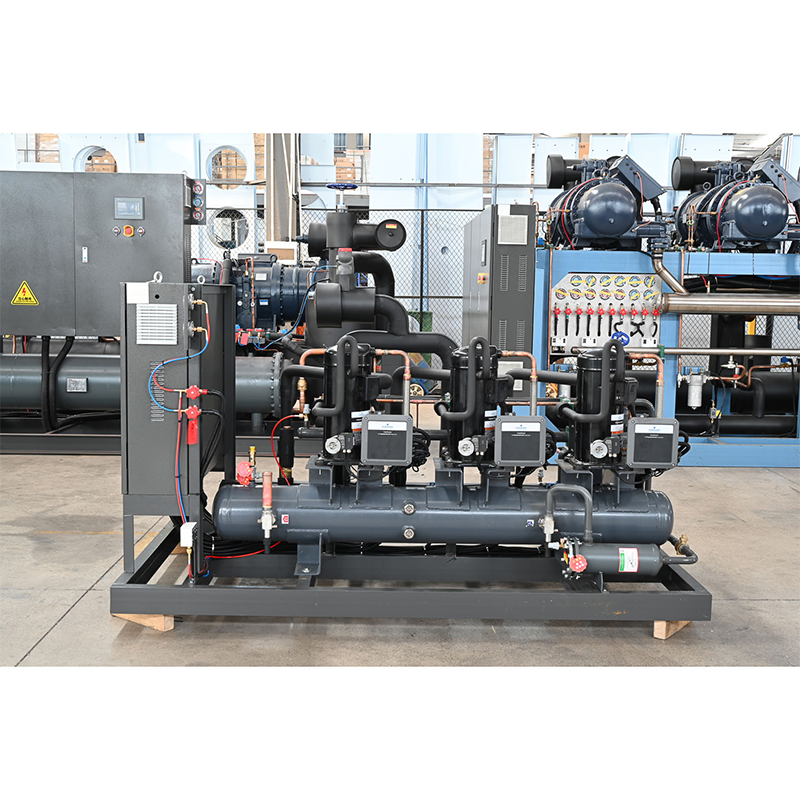

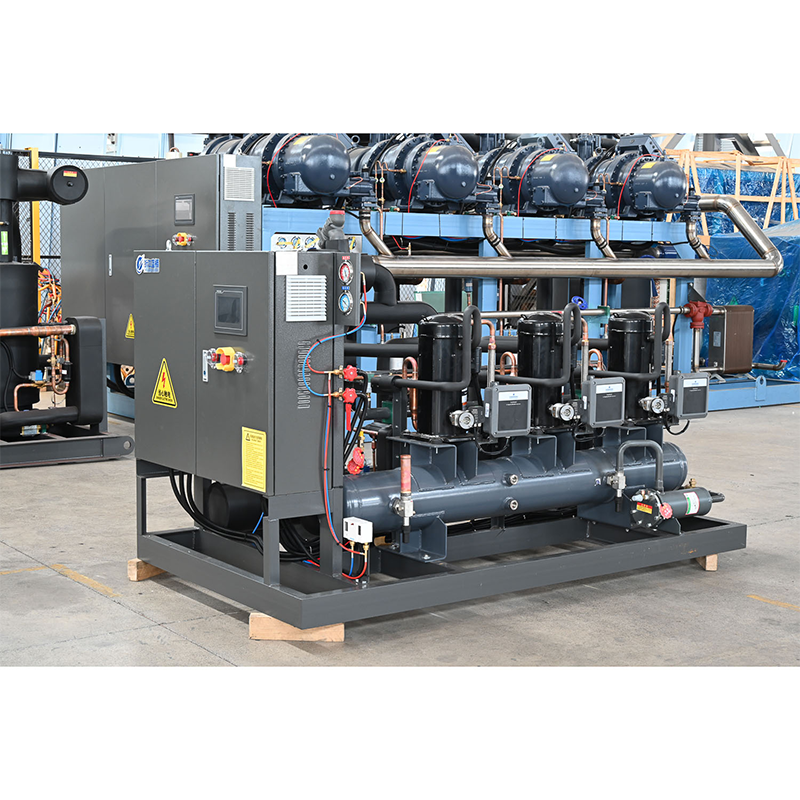

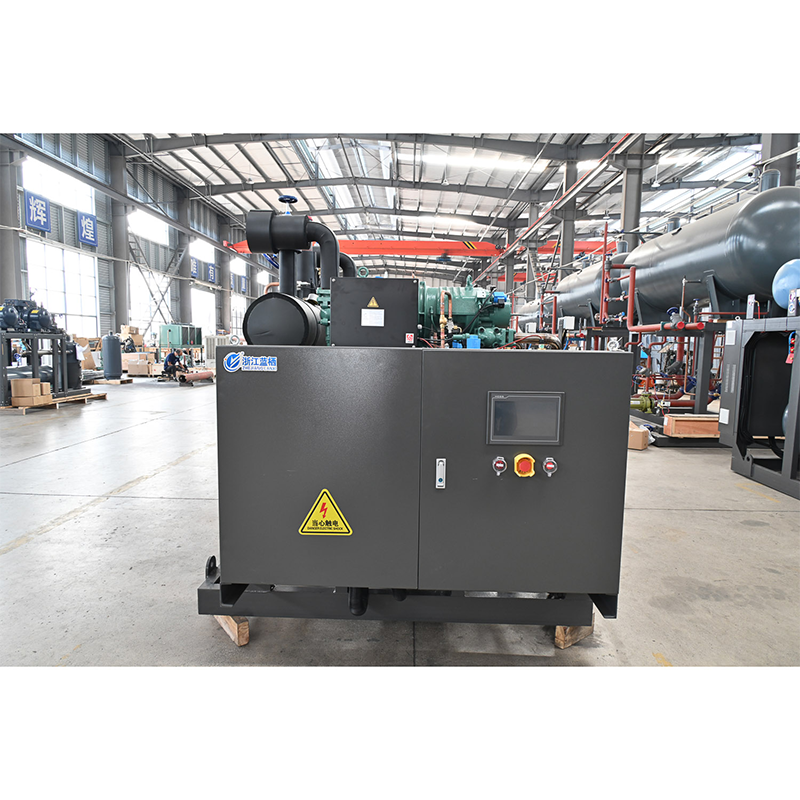

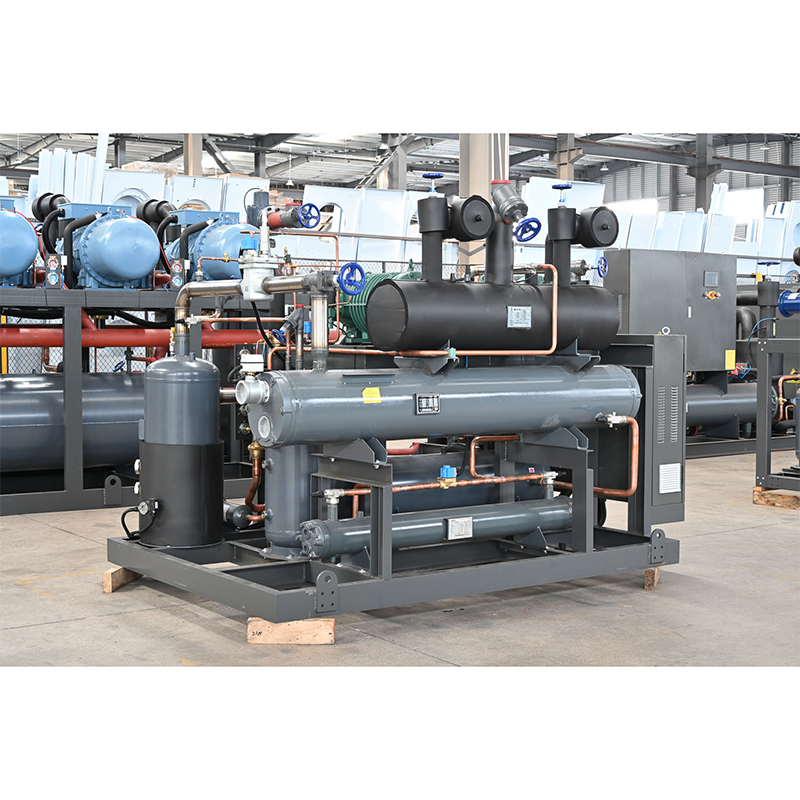

RFC Low temperature screw unit
Ang RFC low temperature screw unit ay isang high-efficiency refrigeration system na partikular na idinisenyo para sa mga low-temperature na kapaligiran. Ito ay malawakang ginagamit sa mga industriya tulad ng pagkain, parmasyutiko, kemikal, at elektroniko para sa mababang temperatura na paglamig at mga pangangailangan sa pagpapalamig. Gumagamit ang unit ng screw compressor bilang pangunahing bahagi nito, na nag-aalok ng malakas na katatagan, mababang ingay, at mataas na kahusayan. Ang RFC series low temperature screw units ay nagbibigay ng tuluy-tuloy at matatag na cooling performance, na tinitiyak ang mataas na kahusayan at pagiging maaasahan kahit na sa ilalim ng matinding mababang temperatura.
Ang compressor ng unit na ito ay gumagamit ng internationally advanced na teknolohiya, na nagbibigay ng mas mataas na energy efficiency ratio at mas mababang failure rate. Tinitiyak nito ang mahusay na pagganap sa mababang temperatura habang binabawasan ang pagkonsumo ng enerhiya, na tumutulong sa mga user na makatipid sa mga gastos sa pagpapatakbo.
Ang RFC low temperature screw unit ay idinisenyo na nasa isip ang pagiging friendly sa kapaligiran, gamit ang mga eco-friendly na nagpapalamig na sumusunod sa mga internasyonal na pamantayan sa pangangalaga sa kapaligiran. Ipinagmamalaki din nito ang malakas na kakayahan sa pagsisimula sa mababang temperatura at malawak na kakayahang umangkop. Bukod pa rito, ang unit ay nilagyan ng isang intelligent control system na maaaring subaybayan ang operating status ng kagamitan sa real-time at awtomatikong ayusin ang mga parameter ng operating, na tinitiyak ang mahusay na pagganap sa ilalim ng iba't ibang mga load.
Upang mapahusay ang kahabaan ng buhay at kaligtasan, ang RFC low temperature screw unit ay nilagyan ng maramihang mga feature ng proteksyon sa kaligtasan, tulad ng overload protection, compressor overheating protection, at oil shortage protection. Ang mga hakbang na ito ay epektibong binabawasan ang panganib ng mga hindi inaasahang pagkabigo at tinitiyak ang matatag na operasyon ng kagamitan.
Panimula sa Mga Parameter ng Kagamitan
Pagpapakita ng Detalye
Makipag-ugnayan sa Amin
Panimula sa Mga Parameter ng Kagamitan
| Modelo ng Unit | Cam.Model (RFC) | Com, Cuartity | Pagkondensasyon temp.,(℃) | Evaporation Temp.《℃) | Reservoi (L) | Tubong supply (mm) | Pagsipsip tubo (mm) | Gas Outiet tubo (mm) | likido inlet tubo (mm) | Dimensyon(mm) (LxW×H) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasidad ng Paglamig/Power lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-30L | SLD120 -30 (30HP) | 1 | 35 | 58.7 | 19.8 | 48.8 | 19.1 | 40.1 | 18.4 | 32.5 | 17.9 | 25.8 | 15.6 | 80 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 55.9 | 24.0 | 46.3 | 22.8 | 37.0 | 21.5 | 29.7 | 20.9 | 23.0 | 20.0 | |||||||||
| 45 | 53.4 | 26.2 | 43.4 | 25.8 | 35.3 | 24.8 | 26.9 | 24.3 | 20.3 | 23.5 | |||||||||
| LXPL-BRFCF2 -60L | 2 | 35 | 117.4 | 39.6 | 97.6 | 38.2 | 80.2 | 368 | 65.0 | 35.8 | 51.6 | 35.2 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2400×1650×1700 | |
| 40 | 111.8 | 48.0 | 92.6 | 45.6 | 74.0 | 43.0 | 59.4 | 41.8 | 46.0 | 40.0 | |||||||||
| 45 | 106.8 | 52.4 | 86.8 | 51.6 | 70.6 | 49.6 | 53.8 | 48.6 | 40.8 | 47.0 | |||||||||
| LXPL-BRFCF3 -90L | 3 | 35 | 176.1 | 59.4 | 146.4 | 57.3 | 120.3 | 55.2 | 97.5 | 53.7 | 77.4 | 52.8 | 200 | Φ45 | Φ89 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 167.7 | 72.0 | 138.9 | 68.4 | 111.0 | 64.5 | 89.1 | 62.7 | 69.0 | 60.0 | |||||||||
| 45 | 160.2 | 78.6 | 130.2 | 77.4 | 105.9 | 74.4 | 80.7 | 72.9 | 61.2 | 70.5 | |||||||||
| LXPL-BRFCF4 -120L | 4 | 35 | 234.8 | 79.2 | 195.2 | 76.4 | 160.4 | 73.6 | 133.0 | 71.6 | 103.2 | 70.4 | 250 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 223.6 | 96.0 | 185.2 | 91.2 | 148.0 | 86.0 | 118.8 | 83.6 | 92.0 | 80.0 | |||||||||
| 45 | 213.6 | 104.8 | 173.6 | 103.2 | 1412 | 99.2 | 107.6 | 97.2 | 81.6 | 94.0 | |||||||||
| LXPL-RFCF-40L | SLD140 -40 (40HP) | 1 | 35 | 67.1 | 22.7 | 55.8 | 21.8 | 45.9 | 21.1 | 37.1 | 20.5 | 29.5 | 20.1 | 100 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 64.0 | 27.5 | 53.0 | 26.1 | 42.3 | 24.6 | 34.0 | 23.9 | 26.3 | 22.9 | |||||||||
| 45 | 61.1 | 30.0 | 49.6 | 29.6 | 40.4 | 28.4 | 30.8 | 27.9 | 23.4 | 26.9 | |||||||||
| LXPL-BRFCF2 -80L | 2 | 35 | 134.2 | 45.4 | 111.6 | 43.6 | 91.8 | 42.2 | 74.2 | 41.0 | 59.0 | 40.2 | 200 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 128.0 | 55.0 | 106.0 | 52.2 | 84.6 | 49.2 | 68.0 | 47.8 | 56.2 | 45.8 | |||||||||
| 45 | 122.2 | 60.0 | 99.2 | 59.2 | 80.8 | 56.8 | 61.6 | 55.8 | 46.8 | 53.8 | |||||||||
| LXPL-BRFCF3 -120L | 3 | 35 | 201.3 | 68.1 | 167.4 | 65.4 | 137.7 | 63.3 | 111.3 | 61.5 | 88.5 | 60.3 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 192.0 | 82.5 | 159.0 | 78.3 | 126.9 | 73.8 | 102.0 | 71.7 | 78.9 | 68.7 | |||||||||
| 45 | 183.3 | 90.0 | 148.8 | 88.8 | 121.2 | 85.2 | 92.4 | 83.7 | 70.2 | 80.7 | |||||||||
| LXPL-BRFCF4 -160L | 4 | 35 | 256.0 | 110.0 | 212.0 | 104.4 | 169.2 | 98.4 | 136.0 | 95.6 | 105.2 | 91.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 201.3 | 68.1 | 167.4 | 65.4 | 137.7 | 63.3 | 111.3 | 61.5 | 88.5 | 60.3 | |||||||||
| 45 | 244.4 | 120.0 | 198.4 | 118.4 | 161.6 | 113.6 | 123.2 | 111.6 | 93.6 | 107.6 | |||||||||
| LXPL-RFCF-50L | SLD190 -50 (50HP) | 1 | 35 | 94.5 | 32.0 | 78.6 | 30.7 | 64.6 | 29.7 | 53.2 | 28.9 | 41.6 | 28.3 | 150 | Φ28 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 90.1 | 38.7 | 74.6 | 36.7 | 59.5 | 34.6 | 47.8 | 33.6 | 37.0 | 32.3 | |||||||||
| 45 | 85.9 | 42.2 | 69.8 | 41.6 | 56.9 | 39.9 | 43.3 | 39.2 | 32.9 | 37.8 | |||||||||
| LXPL-BRFCF2 -100L | 2 | 35 | 189.0 | 64.0 | 157.2 | 61.4 | 1292 | 59.4 | 104.6 | 57.8 | 83.2 | 56.6 | 200 | Φ35 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 180.2 | 77.4 | 149.2 | 73.4 | 119.0 | 692 | 95.6 | 67.2 | 74.0 | 64.6 | |||||||||
| 45 | 171.8 | 84.4 | 139.6 | 83.2 | 113.8 | 798 | 86.6 | 78.4 | 65.8 | 756 | |||||||||
| LXPL-BRFCF3 -150L | 3 | 35 | 283.5 | 96.0 | 235.8 | 92.1 | 193.8 | 89.1 | 156.9 | 86.7 | 124.8 | 84.9 | 250 | Φ45 | Φ108 | Φ76 | Φ57 | 3000×1800×1700 | |
| 40 | 270.3 | 116.1 | 223.8 | 110.1 | 178.5 | 103.8 | 143.4 | 100.8 | 111.0 | 96.9 | |||||||||
| 45 | 257.7 | 126.6 | 209.4 | 124.8 | 170.7 | 119.7 | 129.9 | 117.6 | 98.7 | 113.4 | |||||||||
| LXPL-BRFCF4 -200L | 4 | 35 | 378.0 | 128.0 | 314.4 | 122.8 | 258.4 | 118.8 | 209.2 | 115.6 | 166.4 | 113.2 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 360.4 | 154.8 | 298.4 | 146.8 | 238.0 | 138.4 | 191.2 | 134.4 | 148.0 | 129.2 | |||||||||
| 45 | 343.6 | 166.8 | 279.2 | 166.4 | 227.6 | 159.6 | 173.2 | 156.8 | 131.6 | 151.2 | |||||||||
| Modelo ng Unit | Com.Model (RFC) | Com. Cuartity | Pagkondensasyon temp. (℃) | Pagsingaw Temp. (℃) | Reservoi (L) | Tubong supply (mm) | Pagsipsip tubo (mm) | Gas Outiet tubo (mm) | likido inlet tubo (mm) | Dimensyon(mm) (L×W×H) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasidad ng Paglamig/Power lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-60L | SLD210 -60 (60HP) | 1 | 35 | 104.4 | 35.3 | 86.8 | 34.0 | 71.3 | 32.8 | 57.8 | 31.9 | 45.9 | 31.2 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 99.5 | 42.8 | 82.5 | 40.5 | 65.8 | 38.3 | 529 | 37.1 | 40.9 | 35.7 | |||||||||
| 45 | 95.0 | 46.7 | 77.2 | 46.0 | 62.9 | 44.1 | 47.8 | 433 | 36.4 | 41.8 | |||||||||
| LXPL-BRFCF2 -120L | 2 | 35 | 208.8 | 70.6 | 173.6 | 68.0 | 142.6 | 65.6 | 115.6 | 63.8 | 91.8 | 624 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 199.0 | 85.6 | 165.0 | 81.0 | 131.6 | 76.6 | 105.8 | 74.2 | 81.8 | 71.4 | |||||||||
| 45 | 190.0 | 93.4 | 154.4 | 92.0 | 1258 | 88.2 | 956 | 86.6 | 72.8 | 836 | |||||||||
| LXPL-BRFCF3 -180L | 3 | 35 | 313.2 | 105.9 | 260.4 | 102.0 | 213.9 | 98.4 | 173.4 | 95.7 | 137.7 | 936 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 298.5 | 128.4 | 247.5 | 121.5 | 197.4 | 114.9 | 158.7 | 111.3 | 122.7 | 107.1 | |||||||||
| 45 | 285.0 | 140.1 | 231.6 | 138.0 | 188.7 | 1323 | 143.4 | 129.9 | 109.2 | 125.4 | |||||||||
| LXPL-BRFCF4 -240L | 4 | 35 | 417.6 | 141.2 | 347.2 | 136.0 | 285.2 | 131.2 | 231.2 | 127.6 | 1836 | 124.8 | 300 | Φ57 | Φ108 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 398.0 | 171.2 | 330.0 | 162.0 | 263.2 | 153.2 | 211.6 | 148.4 | 1636 | 1428 | |||||||||
| 45 | 380.0 | 186.8 | 308.8 | 184.0 | 251.6 | 1764 | 191.2 | 173.2 | 1456 | 167.2 | |||||||||
| LXPL-RFCF-70L | SLD230 -70 (70HP) | 1 | 35 | 116.8 | 39.5 | 97.2 | 38.0 | 79.8 | 36.7 | 64.7 | 35.7 | 51.4 | 35.0 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 111.4 | 47.9 | 82.3 | 45.4 | 73.7 | 42.8 | 592 | 41.5 | 45.7 | 39.9 | |||||||||
| 45 | 106.3 | 52.2 | 86.4 | 51.5 | 70.4 | 49.4 | 53.5 | 48.5 | 40.7 | 46.8 | |||||||||
| LXPL-BRFCF2 -140L | 2 | 35 | 233.6 | 79.0 | 194.4 | 76.0 | 159.6 | 73.4 | 129.4 | 71.4 | 1028 | 70.0 | 250 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 222.8 | 95.8 | 174.6 | 90.8 | 147.4 | 85.6 | 118.4 | 83.0 | 91.4 | 79.8 | |||||||||
| 45 | 212.6 | 104.4 | 172.8 | 103.0 | 140.8 | 98.8 | 107.0 | 97.0 | 81.4 | 93.6 | |||||||||
| LXPL-BRFCF3 -210L | 3 | 35 | 350.4 | 118.5 | 291.6 | 114.0 | 239.4 | 110.1 | 194.1 | 107.1 | 154.2 | 105.0 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000×1800×1700 | |
| 40 | 334.2 | 143.7 | 276.9 | 136.5 | 221.1 | 128.4 | 177.6 | 124.5 | 137.1 | 119.7 | |||||||||
| 45 | 318.9 | 156.6 | 259.2 | 154.5 | 211.2 | 148.2 | 160.5 | 145.5 | 122.1 | 140.4 | |||||||||
| LXPL-BRFCF4 -280L | 4 | 35 | 467.2 | 158.0 | 388.8 | 152.0 | 319.2 | 146.8 | 258.8 | 142.8 | 205.6 | 140.0 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 445.6 | 191.6 | 369.2 | 181.6 | 294.8 | 171.2 | 236.8 | 166.0 | 1828 | 159.6 | |||||||||
| 45 | 425.2 | 208.8 | 3456 | 206.0 | 281.6 | 197.6 | 214.0 | 194.0 | 1628 | 187.2 | |||||||||
| LXPL-RFCF-75L | SLD250 -75 (75HP) | 1 | 35 | 124.3 | 42.0 | 103.4 | 40.4 | 84.9 | 39.0 | 68.8 | 38.0 | 54.7 | 37.2 | 200 | Φ35 | Φ76 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 118.5 | 50.9 | 98.2 | 48.3 | 78.4 | 45.6 | 62.9 | 44.2 | 48.6 | 42.5 | |||||||||
| 45 | 113.1 | 55.5 | 91.9 | 54.8 | 74.9 | 52.5 | 57.0 | 51.6 | 43.3 | 49.7 | |||||||||
| LXPL-BRFCF2 -150L | 2 | 35 | 248.6 | 84.0 | 206.8 | 80.8 | 1698 | 78.0 | 137.6 | 76.0 | 109.4 | 74.4 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 237.0 | 1018 | 196.4 | 96.6 | 1568 | 91.2 | 1258 | 88.4 | 97.2 | 85.0 | |||||||||
| 45 | 226.2 | 111.0 | 183.8 | 109.6 | 149.8 | 105.0 | 114.0 | 103.2 | 86.6 | 99.4 | |||||||||
| LXPL-BRFCF3 -225L | 3 | 35 | 372.9 | 126.0 | 310.2 | 121.2 | 254.7 | 117.0 | 206.4 | 114.0 | 164.1 | 111.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000×1800×1700 | |
| 40 | 355.5 | 152.7 | 294.6 | 144.9 | 235.2 | 136.8 | 188.7 | 132.6 | 145.8 | 127.5 | |||||||||
| 45 | 339.3 | 166.5 | 375.7 | 164.4 | 244.7 | 157.5 | 171.0 | 154.8 | 129.9 | 149.1 | |||||||||
| LXPL-BRFCF4 -300L | 4 | 35 | 497.2 | 168.0 | 413.6 | 161.6 | 339.6 | 156.0 | 275.3 | 152.0 | 218.8 | 148.8 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 474.0 | 203.6 | 392.8 | 193.2 | 313.6 | 182.4 | 251.6 | 176.8 | 194.4 | 170.0 | |||||||||
| 45 | 452.4 | 222.0 | 367.6 | 219.2 | 299.6 | 210.0 | 228.0 | 2064 | 173.2 | 198.8 | |||||||||
| Modelo ng Unit | Cam.Model (RFC) | Com, Cuartity | Pagkondensasyon temp. (℃) | Pagsingaw Temp. (℃) | Reservoir (L) | Tubong supply (mm) | Suction pipe (mm) | Gas Outiet pipe (mm) | likido inlet tubo (mm) | Dimensyon(mm) (LxW×H) | |||||||||
| -20 | -25 | -30 -35 | -40 | ||||||||||||||||
| Kapasidad ng Paglamig/Power Input(kw) | |||||||||||||||||||
| LXPL-RFCF-80L | SLD290 -80 (80HP) | 1 | 35 | 144.7 | 48.9 | 120.3 | 47.1 | 98.9 | 45.4 | 80.1 | 44.2 | 63.7 | 43.3 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 137.9 | 59.3 | 114.3 | 56.2 | 91.2 | 53.0 | 73.3 | 51.4 | 56.6 | 49.4 | |||||||||
| 45 | 131.6 | 64.7 | 106.9 | 63.7 | 87.1 | 61.1 | 66.3 | 60.0 | 50.4 | 57.9 | |||||||||
| LXPL-BRFCF2 -180L | 2 | 35 | 289.4 | 97.8 | 240.6 | 94.2 | 197.8 | 90.8 | 160.2 | 88.4 | 127.4 | 86.6 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2000×1800 | |
| 40 | 275.8 | 97.8 | 240.6 | 94.2 | 197.8 | 90.8 | 146.6 | 102.8 | 113.2 | 98.8 | |||||||||
| 45 | 263.2 | 129.4 | 213.8 | 127.4 | 174.2 | 122.2 | 132.6 | 120.0 | 100.8 | 115.8 | |||||||||
| LXPL-BRFCF3 -240L | 3 | 35 | 434.1 | 146.7 | 360.9 | 141.3 | 196.7 | 136.2 | 240.3 | 132.6 | 191.1 | 129.9 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 413.7 | 177.9 | 342.9 | 168.6 | 273.6 | 159.0 | 219.9 | 154.2 | 169.8 | 148.2 | |||||||||
| 45 | 394.8 | 194.1 | 320.7 | 191.1 | 261.3 | 183.3 | 198.9 | 180.0 | 151.2 | 173.7 | |||||||||
| XPL-BRFCF4 -320L | 4 | 35 | 578.8 | 195.6 | 481.2 | 188.4 | 395.6 | 181.6 | 320.4 | 176.8 | 254.8 | 173.2 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 551.6 | 237.2 | 457.2 | 224.8 | 364.8 | 212.0 | 293.2 | 205.6 | 226.4 | 197.6 | |||||||||
| 45 | 526.4 | 258.8 | 427.6 | 254.8 | 348.4 | 244.4 | 265.2 | 240.0 | 201.6 | 231.6 | |||||||||
| LXPL-RFCF -100L | SLD350 -100 (100HP) | 1 | 35 | 173.5 | 58.7 | 144.3 | 56.4 | 118.6 | 54.5 | 96.0 | 53.1 | 26.3 | 51.9 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 165.4 | 71.1 | 137.1 | 67.4 | 109.4 | 63.6 | 87.9 | 61.7 | 67.9 | 59.3 | |||||||||
| 45 | 157.9 | 77.5 | 128.2 | 76.4 | 104.5 | 73.3 | 79.5 | 72.0 | 60.4 | 69.4 | |||||||||
| LXPL-BRFCF2 -200L | 2 | 35 | 347.0 | 117.4 | 288.6 | 112.8 | 237.2 | 109.0 | 192.0 | 106.2 | 152.6 | 103.8 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2200×1800 | |
| 40 | 330.8 | 142.2 | 274.2 | 134.8 | 218.8 | 127.2 | 175.8 | 123.4 | 135.8 | 118.6 | |||||||||
| 45 | 315.8 | 155.0 | 256.4 | 152.8 | 209.0 | 146.6 | 159.0 | 144.0 | 120.8 | 138.8 | |||||||||
| LXPL-BRFCF3 -300L | 3 | 35 | 520.5 | 176.1 | 432.9 | 169.2 | 3558 | 163.5 | 288.0 | 159.3 | 228.9 | 155.7 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 496.2 | 213.3 | 411.3 | 202.2 | 328.2 | 190.8 | 263.7 | 185.1 | 203.7 | 177.9 | |||||||||
| 45 | 473.7 | 232.5 | 384.6 | 229.2 | 313.5 | 219.9 | 238.5 | 216.0 | 181.2 | 208.2 | |||||||||
| LXPL-BRFCF4 -400L | 4 | 35 | 694.0 | 234.8 | 577.2 | 225.6 | 474.4 | 218.0 | 384.0 | 212.4 | 30.52 | 2076 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 661.6 | 284.4 | 548.4 | 269.6 | 437.6 | 2932 | 351.6 | 216.8 | 271.6 | 237.2 | |||||||||
| 45 | 631.6 | 310.0 | 512.8 | 305.6 | 418.0 | 293.2 | 318.0 | 288.0 | 241.6 | 277.6 | |||||||||
| LXPL-RFCF -125L | SLD420 -125 (125HP) | 1 | 35 | 202.3 | 68.4 | 168.2 | 658 | 138.2 | 63.5 | 111.9 | 61.8 | 89.0 | 60.5 | 250 | Φ57 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 |
| 40 | 192.8 | 82.9 | 1598 | 785 | 127.5 | 74.1 | 102.4 | 71.9 | 79.2 | 69.1 | |||||||||
| 45 | 184.0 | 90.4 | 149.5 | 89.1 | 121.8 | 85.5 | 92.7 | 83.9 | 70.4 | 80.9 | |||||||||
| LXPL-BRFCF2 -250L | 2 | 35 | 404.6 | 1368 | 336.4 | 131.6 | 276.4 | 127.0 | 2238 | 123.6 | 178.0 | 121.0 | 400 | Φ76 | Φ108 | Φ89 | Φ76 | 2600×2000×1900 | |
| 40 | 385.6 | 1658 | 319.6 | 157.0 | 255.0 | 148.2 | 204.8 | 143.8 | 158.4 | 138.2 | |||||||||
| 45 | 368.0 | 180.8 | 299.0 | 178.2 | 243.6 | 171.0 | 158.4 | 167.8 | 140.8 | 161.8 | |||||||||
| LXPL-BRFCF3 -370L | 3 | 35 | 606.9 | 205.2 | 504.6 | 197.4 | 414.6 | 190.5 | 335.7 | 158.4 | 267.0 | 181.5 | 500 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 578.4 | 248.7 | 479.4 | 235.5 | 382.5 | 222.3 | 307.2 | 215.7 | 218.7 | 207.3 | |||||||||
| 45 | 552.0 | 271.2 | 448.5 | 267.3 | 365.4 | 256.5 | 378.1 | 251.7 | 211.2 | 242.7 | |||||||||
| LXPL-BRFCF4 -500L | 4 | 35 | 809.2 | 273.6 | 672.8 | 263.2 | 552.8 | 254.0 | 447.6 | 247.2 | 356.0 | 242.0 | 600 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 771.2 | 331.6 | 639.2 | 314.0 | 510.0 | 296.4 | 409.6 | 287.6 | 316.8 | 276.4 | |||||||||
| 45 | 736.0 | 361.6 | 598.0 | 356.4 | 487.2 | 342.0 | 370.8 | 355.6 | 281.6 | 323.6 | |||||||||
| Modelo ng Unit | Com.Model (RFC) | Com. Cuartity | Pagkondensasyon temp. (℃) | Pagsingaw Temp. (℃) | Reservoir (L) | Supply pipe (mm) | Suction pipe (mm) | Gas Outiet tubo (mm) | likido inlet tubo (mm) | Dimensyon(mm) (L×W×H) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Kapasidad ng Paglamig/Power Input(kw) | |||||||||||||||||||
| LXPL-RFCF -140L | SLD470 -140 (140HP) | 1 | 35 | 228.5 | 77.3 | 190.1 | 74.3 | 156.2 | 71.7 | 126.5 | 69.9 | 100.6 | 68.4 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 |
| 40 | 217.9 | 93.7 | 180.6 | 88.7 | 144.1 | 83.8 | 115.7 | 81.2 | 894 | 78.1 | |||||||||
| 45 | 207.9 | 102.1 | 168.9 | 100.7 | 137.6 | 96.6 | 104.7 | 94.8 | 79.6 | 91.5 | |||||||||
| LXPL-BRFCF2 -280L | 2 | 35 | 457.0 | 154.6 | 380.2 | 148.6 | 312.4 | 143.4 | 253.0 | 1398 | 201.2 | 136.8 | 400 | Φ57 | Φ108 | Φ89 | Φ76 | 2600×2000×1900 | |
| 40 | 4358 | 187.4 | 361.2 | 77.4 | 288.2 | 167.6 | 231.4 | 1624 | 178.8 | 156.2 | |||||||||
| 45 | 4158 | 204.2 | 337.8 | 201.4 | 275.2 | 193.2 | 209.4 | 1896 | 159.2 | 183.0 | |||||||||
| LXPL-BRFCF3 -420L | 3 | 35 | 685.5 | 231.9 | 570.3 | 222.9 | 468.6 | 213.3 | 379.5 | 209.7 | 301.8 | 2052 | 600 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 653.7 | 281.1 | 541.8 | 266.1 | 432.3 | 251.4 | 346.5 | 243.6 | 268.2 | 234.3 | |||||||||
| 45 | 623.7 | 306.3 | 506.7 | 302.1 | 412.8 | 289.8 | 314.1 | 284.4 | 238.8 | 274.5 | |||||||||
| LXPL-BRFCF4 -560L | 4 | 35 | 914.0 | 309.2 | 760.4 | 297.2 | 624.8 | 286.8 | 506.0 | 279.6 | 402.4 | 273.6 | 800 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 871.6 | 374.8 | 722.4 | 354.8 | 576.4 | 335.2 | 462.8 | 334.8 | 357.6 | 312.4 | |||||||||
| 45 | 831.6 | 408.4 | 675.6 | 402.8 | 550.4 | 386.4 | 418.8 | 379.2 | 318.4 | 366.0 | |||||||||
| LXPL-RFCF -160L | SLD520 -160 (160HP) | 1 | 35 | 2528 | 85.5 | 210.3 | 82.2 | 172.8 | 79.4 | 139.9 | 77.3 | 111.2 | 75.7 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1700×1800 |
| 40 | 241.0 | 103.6 | 199.7 | 98.2 | 159.4 | 92.7 | 128.1 | 89.9 | 98.9 | 86.4 | |||||||||
| 45 | 230.0 | 113.0 | 186.9 | 111.4 | 152.3 | 106.9 | 115.9 | 104.9 | 88.1 | 101.2 | |||||||||
| LXPL-BRFCF2 -320L | 2 | 35 | 505.6 | 171.0 | 420.6 | 164.4 | 345.6 | 158.8 | 279.8 | 154.6 | 222.4 | 151.4 | 500 | Φ76 | Φ133 | Φ89 | Φ76 | 3000×1800×1800 | |
| 40 | 482.0 | 202.7 | 399.4 | 196.4 | 318.8 | 185.4 | 1562 | 179.8 | 197.8 | 172.8 | |||||||||
| 45 | 460.0 | 226.0 | 373.8 | 222.8 | 304.6 | 213.8 | 231.8 | 209.8 | 176.2 | 202.4 | |||||||||
| LXPL-BRFCF3 -480L | 3 | 35 | 758.4 | 256.5 | 630.9 | 246.6 | 518.4 | 328.2 | 419.7 | 231.9 | 333.6 | 227.1 | 600 | Φ89 | Φ159 | Φ108 | Φ89 | 4100×2100×2500 | |
| 40 | 723.0 | 310.8 | 599.1 | 294.6 | 478.2 | 370.8 | 384.3 | 269.7 | 296.7 | 259.2 | |||||||||
| 45 | 690.0 | 339.0 | 560.7 | 334.2 | 4569 | 320.7 | 347.7 | 314.7 | 264.3 | 303.6 | |||||||||
| LXPL-BRFCF4 -640L | 4 | 35 | 1011.2: | 342..0 | 841.2 | 328.8 | 691.2 | 317.6 | 559.6 | 309.2 | 444.8 | 302.8 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4900×2300×2700 | |
| 40 | 964.0 | 414.4 | 798.8 | 392.8 | 637.6 | 370.8 | 512.4 | 3596 | 395.6 | 345.6 | |||||||||
| 45 | 920.0 | 452.0 | 747.6 | 445.6 | 6092 | 426.7 | 463.6 | 4196 | 352.4 | 404.8 | |||||||||
| LXPL-RFCF -200L | SLD640 -200 (200HP) | 1 | 35 | 317.3 | 107.3 | 263.9 | 1032 | 2168 | 99.6 | 175.6 | 97.0 | 139.6 | 95.0 | 300 | Φ57 | Φ108 | Φ76 | Φ76 | 2400×1700×1800 |
| 40 | 302.5 | 130.0 | 250.7 | 123.2 | 200.0 | 116.3 | 160.7 | 112.8 | 124.2 | 108.4 | |||||||||
| 45 | 288.6 | 141.8 | 234.5 | 139.8 | 191.1 | 134.1 | 145.4 | 131.7 | 110.5 | 127.0 | |||||||||
| LXPL-BRFCF2 -400L | 2 | 35 | 634.6 | 214.6 | 527.6 | 206.4 | 433.6 | 1992 | 351.2 | 194.0 | 279.2 | 190.0 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 3000×1800×1800 | |
| 40 | 605.0 | 260.0 | 501.4 | 246.4 | 400.0 | 232.6 | 321.4 | 225.6 | 248.4 | 216.8 | |||||||||
| 45 | 577.2 | 283.6 | 469.0 | 2796 | 382.2 | 268.2 | 321.4 | 2634 | 221.0 | 254.0 | |||||||||
| LXPL-BRFCF3 -600L | 3 | 35 | 951.9 | 321.9 | 791.7 | 309.6 | 650.4 | 298.8 | 526.8 | 291.0 | 418.8 | 285.0 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | |
| 40 | 907.5 | 390.0 | 752.1 | 369.6 | 600.0 | 348.9 | 482.1 | 338.4 | 372.6 | 325.2 | |||||||||
| 45 | 865.8 | 425.4 | 703.5 | 419.4 | 573.3 | 402.3 | 436.2 | 395.1 | 331.5 | 381.0 | |||||||||
| LXPL-BRFCF4 -B00L | 4 | 35 | 1269.2 | 429.2 | 1055.6 | 412.8 | 867.2 | 398.4 | 702.4 | 388.0 | 558.4 | 380.0 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | |
| 40 | 1210.0 | 520.0 | 1002.8 | 492.8 | 800.0 | 465.2 | 642.8 | 451.2 | 496.8 | 433.6 | |||||||||
| 45 | 1154.4! | 567.2 | 938.0 | 559.2 | 764.4 | 536.4 | 581.6 | 526.8 | 442.0 | 508.0 | |||||||||
Pagpapakita ng Detalye
Makipag-ugnayan sa Amin
TUNGKOL SA AMIN
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Bilang Tsina RFC Low temperature screw unit Mga Tagatustos at RFC Low temperature screw unit Pabrika,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. dalubhasa sa mahusay, luntian, at napapanatiling mga solusyon sa pagpapalamig. Sa paggamit ng mga de-kalidad na produkto at makabagong teknolohiya, pinaglilingkuran namin ang mga sektor ng pagkain, parmasyutiko, kemikal, at cold chain logistics, na lumilikha ng mga sistemang matipid sa enerhiya at pangkalikasan para sa aming mga kostumer at nagtataguyod ng kapwa kapaki-pakinabang na pag-unlad para sa industriya at kapaligiran.
Sertipiko ng Karangalan
Balita
-
Pumunta sa isang malamig na storage room at pakiramdaman ang hangin malapit sa pinto. Kung ang isang sulok ay mas mainit kaysa sa isa pa, o ang temperatura ay umaanod paitaas tuwing hapon, ang pang-industriyang air cooler na naka-moun...
MAGBASA PA -
Kapag sinusuri ng planta sa pagpoproseso ng pagkain sa isang rehiyong kulang sa tubig ang mga opsyon nito sa pagpapalamig, kadalasang nagpapasya ang pagpili ng condenser kung maaaprubahan ang proyekto. Ang mga condenser na pinalamig n...
MAGBASA PA -
Habang naghahanap ng isang tagagawa ng evaporator at condenser , Ang Lanxi Refrigeration ay tiyak na nagkakahalaga ng iyong pansin. May mga natatanging bentahe sa disenyo at produksyon ng condenser, ang Lanxi Refrigeration ay nagh...
MAGBASA PA
MAKIPAG-UGNAYAN SA AMIN
MGA MABILIS NA LINK
MGA PRODUKTO
IMPORMASYON SA KONTAK
- Email: [email protected]
- Telepono: +86-15258555916
- Idagdag: 301 Punan Avenue, Pukou Street, Shengzhou City, Shaoxing City, Zhejiang Province.China
Copyright © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Lahat ng Karapatan ay Nakalaan.
浙ICP备2022034605号-1
Pakyawan RFC Low temperature screw unit Pabrika
